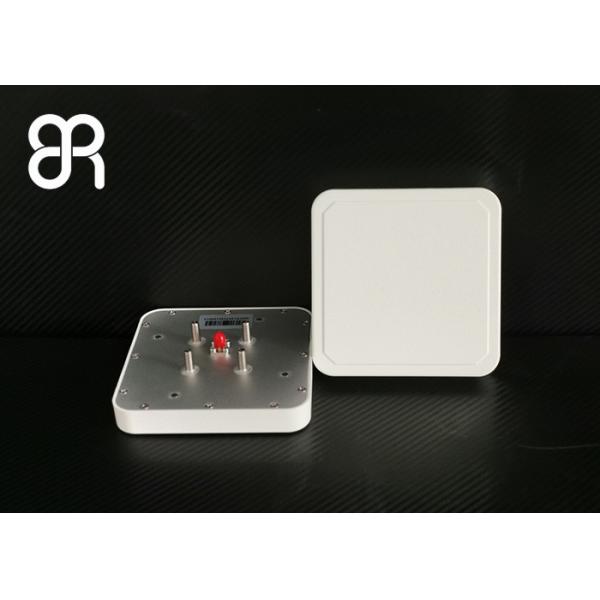

BRA-02CR 902～928MHz 6dBic Small RFID Antenna for rfid handset and other RFID application fields
Application scenario
1) Apparel retail, mainly for inventory, in and out of library management, etc., Shachi, Decathlon, Haicang House
2) The application of the logistics express industry can realize the rapid transit and inventory of parcels, bulk sorting, etc., to achieve logistics transparency (Amazon, Jingdong, SF)
3) Personnel management, mainly for personnel access management, illegal personnel entering alarm prompts (medical, school, conference room, etc.)
4) Production line management, transparent and visual management of production processes, and improved manufacturing efficiency, such as electronic products, tires (Apple, Gree, Haier, Midea)
Product Function and Features
(1)Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.
(2)Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.
(3)BRA-02CR Antenna is of convenient application in automated production line management, warehousing, logistics, retail and other UHF RFID application fields.
Performance Specifications
| Frequency Range | 902MHz～928MHz(865MHz～868MHz) |
| VSWR | ≤1.3:1 |
| Gain | > 6 dBic |
| H side HPBW | 105° |
| E side HPBW | 105° |
| Polarization | Circular Polarization |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type | SMA-50KFD Female |
Installation
The BRA-02CR antenna can be mounted on the steel frame structure or pillar by its own bracket or user-fitted bracket, and connected to the reader through the coaxial cable. The antenna can be installed horizontally or vertically, depending on the mounting orientation of the bracket. After installation, the tilt angle of the antenna can be adjusted according to the actual situation.
The antenna mount is an option and the customer can choose as needed.
